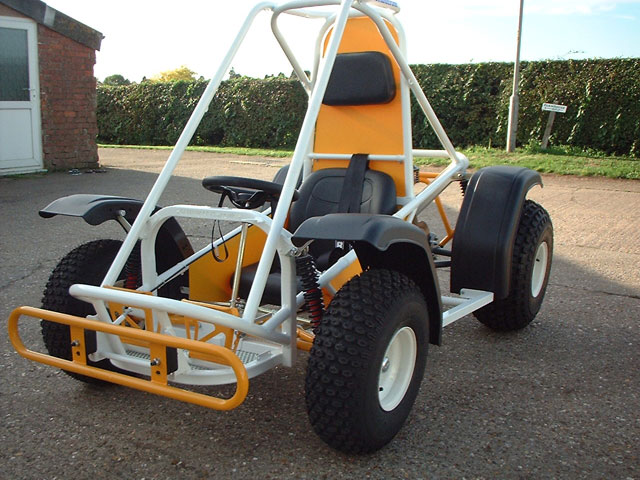

Dominator Mk3 off road kart

£4,374.27

The new Dominator Mk3 is a family fun kart made up to full commercial specification*, it has an age range from 7 and up to adult. It features front & rear fully independent suspension and a top quality torque converter drive system. This gives the kart all the fun of the Liberator at a more competitive price.

Categories: , ,

The new Dominator Mk3 is a family fun kart made up to full commercial specification*, it has an age range from 7 and up to adult. It features front & rear fully independent suspension and a top quality torque converter drive system. This gives the kart all the fun of the Liberator at a more competitive price.

This is one of the best handling karts which have a good ground clearance and excellent stability. A heavy duty drive chain is standard on this high specification kart.

In the Mk 3 Dominator all major components have been placed for easy maintenance and now have stainless steel seat runners making this a reliable track operator’s kart.

For commercial use this kart has a Health & Safety recommend A.D.I.P.S Design review.

Length* : 2070mm
Width : 1335mm
Height : 1320mm
Wheel Base : 1150mm (52″)
Suspension : True Independent Front & Rear
Age Range : 7 to Adult
Weight (approx) : 150 kgs
Speeds** : Up to 25 MPH
(Up to 40 KPH)
Please note imperial measurements are rounded up to the nearest inch.
* Add 5″ (127mm) if front and rear bumpers are fitted.
** Speed is theoretical and depends on layshaft ratio

All karts forward speed can be adjusted to walking pace if required.
4 HP = 120cc, 5.5 HP = 160cc, 6.5 HP = 200cc, 9 HP = 270cc, 11 HP = 340cc, 13 HP = 390cc.

Click Here to read answers to Frequently Asked Questions

Specification Sheet

  • Jig welded space frame chassis.
  • Box section base frame & Drawn tubing
  • True independent Front & Rear suspension with adjustable coil over shock absorbers.
  • Disc brake
  • Three point harness seat belt
  • Steering wheel hand straps
  • Bulkhead wall & Mushroom E-Stop
  • Large 20″ front & 22″ rear off road knobbly tyres.
  • Mudguards and side protection
  • Fully adjustable padded seat
  • Low centre of gravity
  • Ackerman steering
  • Powder coated chassis with colour choice.

Engine and Transmission

  • Subaru Robin 7 HP 210cc or Honda GX200 6.5 HP 200cc
  • 2 Safety cut out switches
  • Automatic speed torque converter drive
  • Universal joint rear drive shafts
  • Throttle pedal limit stop

Optional Extras

  • Front Bumpers
  • Rear Bumpers
  • Rear turf tyre
  • Hydraulic Brakes
  • From £3450 + vat
