Cyclekart Front Axle


SKU: N/A Category:

Front axle for cyclekarts.

1 3/8″ x 14 SWG CFS 3 BK drawn tube.

As standard, the axle king pins are set with a 16 degrees camber.

With the axle fixed in an upright position  it has 6 degrees of caster.

If the yolks are purchased with the stub axles welded on and are  cut at 16 degrees this will give you neutral camber.

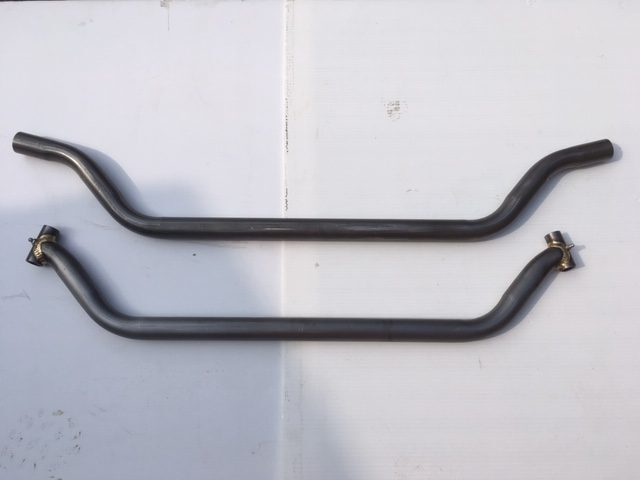

The dimensions of the plain axle are here.

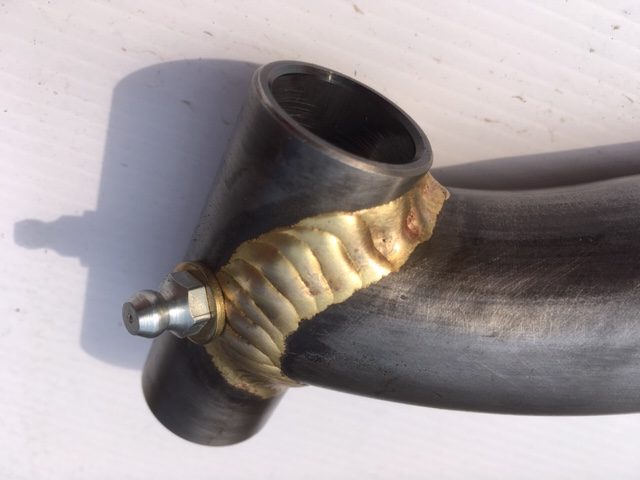

With the king pins welded on, the top centre to centre measurement is 780 mm, with the Honda wheel that will achieve a tracking of 956mm.

Parts to be added soon.

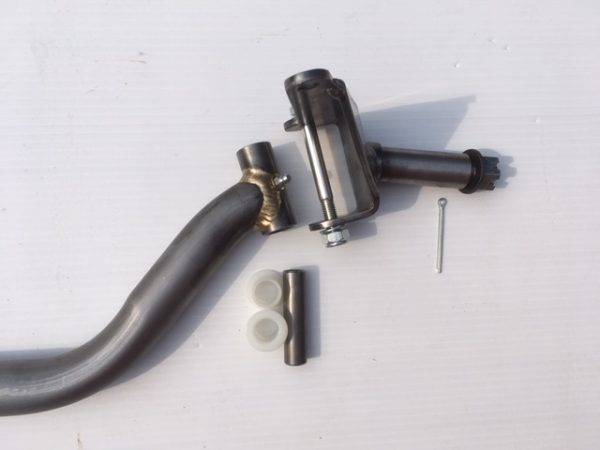

A Plain Bore king pin or a Bearing king pin option available.

17 mm stub axle option

Additional information

Weight N/A
Cyclekart Front Axle

Option C, Option D, Option E, Option A, Option B
